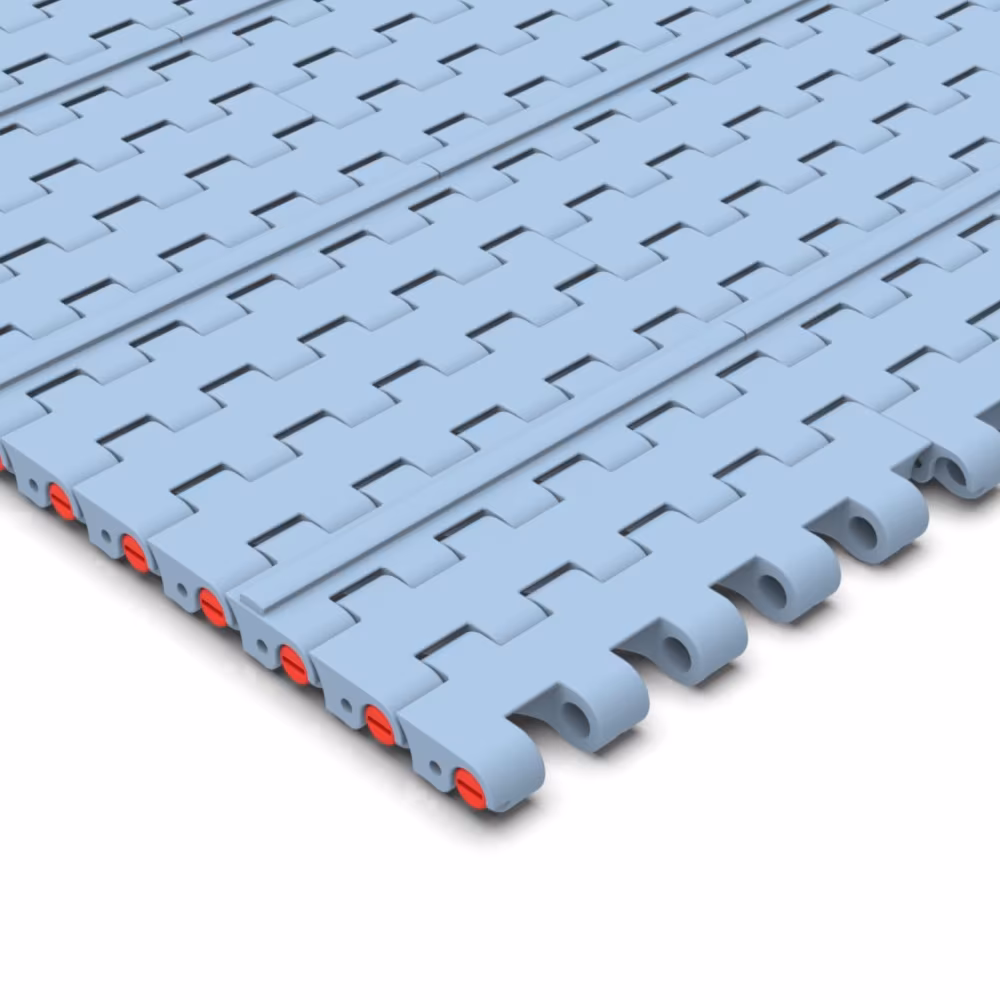

Benzi transportoare modulare 525 Heavy Duty Flat Top + RIB la prețuri competitive. Contactează-ne pentru detalii și informații telefonic 0799 722 222 sau online contact@ci.ro
Banda modulară 525 Heavy Duty Flat Top + Rib este o bandă transportoare din material plastic tehnic, destinată aplicațiilor industriale cu sarcini ridicate. Are pas modular de 25 mm și suprafață închisă de tip flat top prevăzută cu nervuri (rib), care asigură susținerea stabilă a produselor și îmbunătățirea aderenței în timpul transportului.
Construcția robustă a modulelor, asamblate prin pini, permite realizarea benzilor în diferite lățimi și asigură rezistență ridicată la uzură, sarcini mecanice și solicitări industriale. Banda este utilizată pe transportoare drepte pentru manipularea produselor în industrii precum ambalare, logistică, băuturi și procesare industrială.
| Cod produs | Lățime (mm) | Material | Material pin | Version | Piesa | Rază flexare retur (mm) | Sarcină max. lucru (N/m) | Masă (kg/m²) | Fixare | Ambalare |
| P5261010170A-XR5 | 170 mm (6,69″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010255A-XR5 | 255 mm (10,04″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010340A-XR5 | 340 mm (13,39″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010425A-XR3 | 425 mm (16,73″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 5,02 ft – 1,53 m |
| P5261010510A-XR5 | 510 mm (20,08″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010595A-XR5 | 595 mm (23,43″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010680A-XR5 | 680 mm (26,77″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010765A-XR5 | 765 mm (30,12″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010850A-XR5 | 850 mm (33,46″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010935A-XR3 | 935 mm (36,81″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011020A-XR3 | 1020 mm (40,16″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011105A-XR5 | 1105 mm (43,50″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011190A-XR5 | 1190 mm (46,85″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011275A-XR5 | 1275 mm (50,20″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011360A-XR5 | 1360 mm (53,54″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011445A-XR5 | 1445 mm (56,89″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011530A-XR5 | 1530 mm (60,24″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010085B-XR5 | 85 mm (3,35″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010170B-XR5 | 170 mm (6,69″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010255B-XR5 | 255 mm (10,04″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010340B-XR5 | 340 mm (13,39″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010425B-XR5 | 425 mm (16,73″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010510B-XR5 | 510 mm (20,08″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010595B-XR5 | 595 mm (23,43″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010680B-XR5 | 680 mm (26,77″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010765B-XR5 | 765 mm (30,12″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010850B-XR5 | 850 mm (33,46″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010935B-XR5 | 935 mm (36,81″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011020B-XR5 | 1020 mm (40,16″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011105B-XR5 | 1105 mm (43,50″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011190B-XR5 | 1190 mm (46,85″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011275B-XR5 | 1275 mm (50,20″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011360B-XR5 | 1360 mm (53,54″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011445B-XR5 | 1445 mm (56,89″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011530B-XR5 | 1530 mm (60,24″) | LFA – Low friction acetal (01) | PBT alb | B – 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010085C-XR5 | 85 mm (3,35″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010170C-XR5 | 170 mm (6,69″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010255C-XR5 | 255 mm (10,04″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010340C-XR5 | 340 mm (13,39″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010425C-XR5 | 425 mm (16,73″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010510C-XR5 | 510 mm (20,08″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010595C-XR3 | 595 mm (23,43″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 5,02 ft – 1,53 m |
| P5261010680C-XR5 | 680 mm (26,77″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010765C-XR5 | 765 mm (30,12″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010850C-XR5 | 850 mm (33,46″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010935C-XR5 | 935 mm (36,81″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011020C-XR5 | 1020 mm (40,16″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011105C-XR5 | 1105 mm (43,50″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011190C-XR5 | 1190 mm (46,85″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011275C-XR5 | 1275 mm (50,20″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011360C-XR5 | 1360 mm (53,54″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011445C-XR5 | 1445 mm (56,89″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261011530C-XR5 | 1530 mm (60,24″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010425A-XR5 | 425 mm (16,73″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261010935A-XR5 | 935 mm (36,81″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft – 1,5 m |
| P5261011020A-XR5 | 1020 mm (40,16″) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft – 1,5 m |
| P5261010595C-XR5 | 595 mm (23,43″) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
| P5261030085A-XR5 | 85 mm (3,35″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030170A-XR5 | 170 mm (6,69″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030255A-XR5 | 255 mm (10,04″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030340A-XR3 | 340 mm (13,39″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030425A-XR3 | 425 mm (16,73″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030510A-XR5 | 510 mm (20,08″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030595A-XR5 | 595 mm (23,43″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030680A-XR5 | 680 mm (26,77″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030765A-XR5 | 765 mm (30,12″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030850A-XR5 | 850 mm (33,46″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030935A-XR5 | 935 mm (36,81″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031020A-XR5 | 1020 mm (40,16″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031105A-XR5 | 1105 mm (43,50″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031190A-XR5 | 1190 mm (46,85″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031275A-XR5 | 1275 mm (50,20″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031360A-XR5 | 1360 mm (53,54″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031445A-XR5 | 1445 mm (56,89″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031530A-XR5 | 1530 mm (60,24″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030085B-XR5 | 85 mm (3,35″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030170B-XR5 | 170 mm (6,69″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030255B-XR5 | 255 mm (10,04″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030340B-XR5 | 340 mm (13,39″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030425B-XR5 | 425 mm (16,73″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030510B-XR5 | 510 mm (20,08″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030595B-XR5 | 595 mm (23,43″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030680B-XR5 | 680 mm (26,77″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030765B-XR5 | 765 mm (30,12″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030850B-XR5 | 850 mm (33,46″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030935B-XR5 | 935 mm (36,81″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031020B-XR5 | 1020 mm (40,16″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031105B-XR5 | 1105 mm (43,50″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031190B-XR5 | 1190 mm (46,85″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031275B-XR5 | 1275 mm (50,20″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031360B-XR5 | 1360 mm (53,54″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031445B-XR5 | 1445 mm (56,89″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031530B-XR5 | 1530 mm (60,24″) | MX – Performance PBT (03) | POM gri | B – 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030085C-XR5 | 85 mm (3,35″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030170C-XR5 | 170 mm (6,69″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030255C-XR5 | 255 mm (10,04″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030340C-XR5 | 340 mm (13,39″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030425C-XR5 | 425 mm (16,73″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030510C-XR5 | 510 mm (20,08″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030595C-XR5 | 595 mm (23,43″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030680C-XR5 | 680 mm (26,77″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030765C-XR5 | 765 mm (30,12″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030850C-XR5 | 850 mm (33,46″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030935C-XR5 | 935 mm (36,81″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031020C-XR5 | 1020 mm (40,16″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031105C-XR5 | 1105 mm (43,50″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031190C-XR5 | 1190 mm (46,85″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031275C-XR5 | 1275 mm (50,20″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031360C-XR5 | 1360 mm (53,54″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031445C-XR5 | 1445 mm (56,89″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261031530C-XR5 | 1530 mm (60,24″) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | – |
| P5261030340A-XR5 | 340 mm (13,39″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft – 1,5 m |
| P5261030425A-XR5 | 425 mm (16,73″) | MX – Performance PBT (03) | POM gri | A – No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft – 1,5 m |
| P5261010085A-XR5 | 85 mm (3,35″) | LFA – Low friction acetal (01) | POM gri | A – No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | – |
