1.00€
Benzi transportoare modulare 590 Flat Top la prețuri competitive. Contactează-ne pentru detalii și informații telefonic 0799 722 222 sau online contact@ci.ro

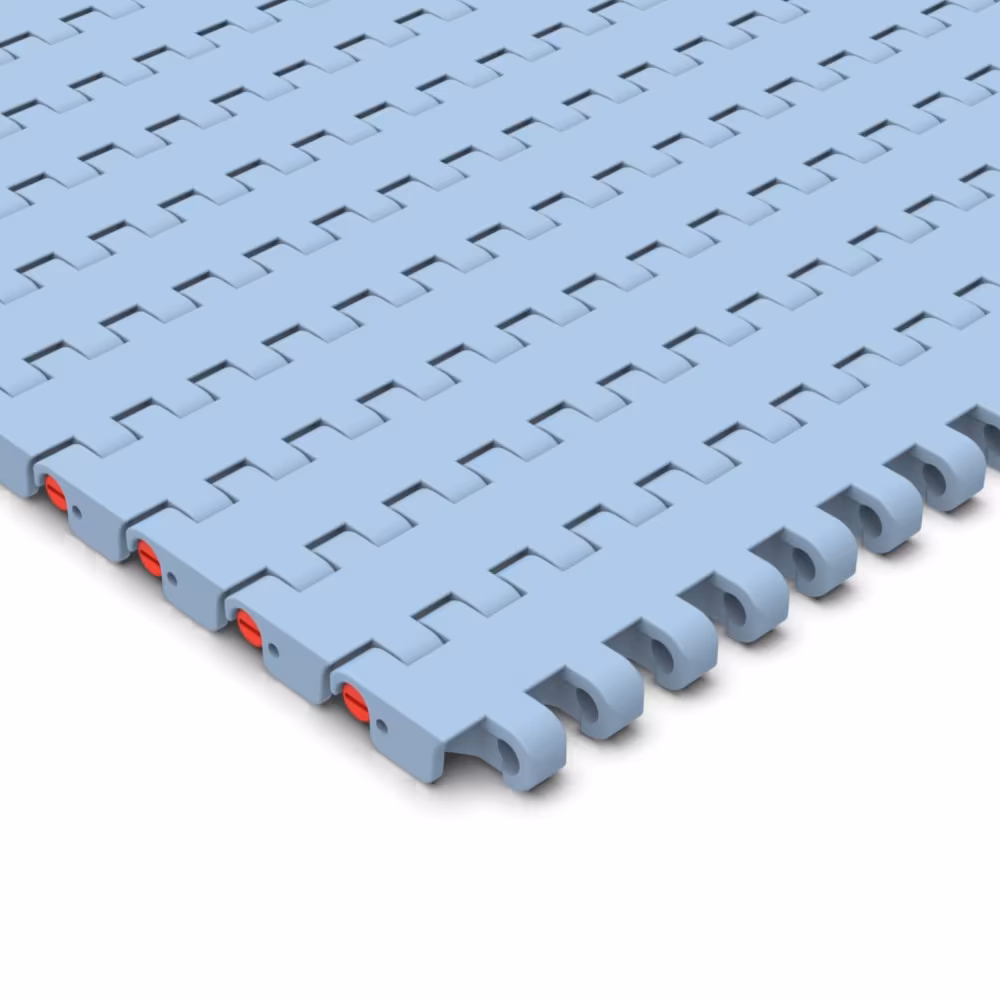

Descriere produs banda modulara 590 Flat Top
Banda transportoare modulară 590 Flat Top de la Movex este concepută pentru a transporta produse pe o suprafață complet plană, oferind stabilitate maximă și o manipulare ușoară în timpul proceselor industriale. Modulele sale se îmbină precis, rezultînd o suprafață continuă care nu permite alunecarea produselor și este ușor de curățat. Fiecare modul este fabricat din materiale rezistente, cum ar fi acetal cu frecare redusă sau PBT performant, iar știfturile sunt realizate din materiale de tip PBT sau POM, garantând durabilitate și rezistență la uzură. Banda poate fi configurată în diverse lățimi standard, iar modularitatea sa permite adaptarea la trasee drepte sau la configurații speciale, cu sau fără poziționatori, în funcție de nevoile liniei de producție. Această soluție industrială este ideală pentru transportul continuu de produse pe suprafețe netede, oferind eficiență și fiabilitate în aplicații de manipulare, ambalare și automatizare.
| Cod produs | Lățime | Material | Material ax | Versiune | Piesa | Raza flexie spate | Masa maxima | Masa | Fixare | Ambalare |
| P5301010006A | 6″ (152,4 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301010009A | 9″ (228,6 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301010012A | 12″ (304,8 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010015A | 15″ (381 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010018A | 18″ (457,2 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010021A | 21″ (533,4 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010024A | 24″ (609,6 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010027A | 27″ (685,8 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010030A | 30″ (762 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010033A | 33″ (838,2 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010036A | 36″ (914,4 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010039A | 39″ (990,6 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010042A | 42″ (1066,8 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010045A | 45″ (1143 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010048A | 48″ (1219,2 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010051A | 51″ (1295,4 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010054A | 54″ (1371,6 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250003A | 3″ (76,2 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301250006A | 6″ (152,4 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301250009A | 9″ (228,6 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301250012A | 12″ (304,8 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250015A | 15″ (381 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250018A | 18″ (457,2 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250021A | 21″ (533,4 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250024A | 24″ (609,6 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250027A | 27″ (685,8 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250030A | 30″ (762 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250033A | 33″ (838,2 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250036A | 36″ (914,4 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250039A | 39″ (990,6 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250042A | 42″ (1066,8 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301250045A | 45″ (1143 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301250048A | 48″ (1219,2 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301250051A | 51″ (1295,4 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301250054A | 54″ (1371,6 mm) | MPX – Lubricated Acetal (25) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301010003C | 3″ (76,2 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301010006C | 6″ (152,4 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301010009C | 9″ (228,6 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301010012C | 12″ (304,8 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010015C | 15″ (381 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010018C | 18″ (457,2 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010021C | 21″ (533,4 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010024C | 24″ (609,6 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010027C | 27″ (685,8 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010030C | 30″ (762 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010033C | 33″ (838,2 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010036C | 36″ (914,4 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010039C | 39″ (990,6 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010042C | 42″ (1066,8 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010045C | 45″ (1143 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010048C | 48″ (1219,2 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010051C | 51″ (1295,4 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301010054C | 54″ (1371,6 mm) | LFA – Low friction acetal (01) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250003C | 3″ (76,2 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301250006C | 6″ (152,4 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301250009C | 9″ (228,6 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301250012C | 12″ (304,8 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250015C | 15″ (381 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250018C | 18″ (457,2 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250021C | 21″ (533,4 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250024C | 24″ (609,6 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250027C | 27″ (685,8 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250030C | 30″ (762 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250033C | 33″ (838,2 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250036C | 36″ (914,4 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250039C | 39″ (990,6 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301250042C | 42″ (1066,8 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301250045C | 45″ (1143 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301250048C | 48″ (1219,2 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301250051C | 51″ (1295,4 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301250054C | 54″ (1371,6 mm) | MPX – Lubricated Acetal (25) | PBT alb | C – 2 Positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301030003A | 3″ (76,2 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301030006A | 6″ (152,4 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301030009A | 9″ (228,6 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301030012A | 12″ (304,8 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030015A | 15″ (381 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030018A | 18″ (457,2 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030021A | 21″ (533,4 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030024A | 24″ (609,6 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030027A | 27″ (685,8 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030030A | 30″ (762 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030033A | 33″ (838,2 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030036A | 36″ (914,4 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030039A | 39″ (990,6 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030042A | 42″ (1066,8 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301030045A | 45″ (1143 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301030048A | 48″ (1219,2 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301030051A | 51″ (1295,4 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301030054A | 54″ (1371,6 mm) | MX – Performance PBT (03) | POM gri | A – No positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301030003C | 3″ (76,2 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301030006C | 6″ (152,4 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301030009C | 9″ (228,6 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
| P5301030012C | 12″ (304,8 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030015C | 15″ (381 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030018C | 18″ (457,2 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030021C | 21″ (533,4 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030024C | 24″ (609,6 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030027C | 27″ (685,8 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030030C | 30″ (762 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030033C | 33″ (838,2 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030036C | 36″ (914,4 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030039C | 39″ (990,6 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 5 ft – 1,524 m |
| P5301030042C | 42″ (1066,8 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301030045C | 45″ (1143 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301030048C | 48″ (1219,2 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301030051C | 51″ (1295,4 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| P5301030054C | 54″ (1371,6 mm) | MX – Performance PBT (03) | POM gri | C – 2 Positioners | P5301 | 25 mm | 24000 N/m | 7 kg/m^2 | Snap-in Clip | 3,38 ft – 1,029 m |
| F590FTLFB0003-PBT | 3″ (76,2 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0006-PBT | 6″ (152,4 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0009-PBT | 9″ (228,6 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0012-PBT | 12″ (304,8 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0015-PBT | 15″ (381 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0018-PBT | 18″ (457,2 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0021-PBT | 21″ (533,4 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0024-PBT | 24″ (609,6 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0027-PBT | 27″ (685,8 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0030-PBT | 30″ (762 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0033-PBT | 33″ (838,2 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0036-PBT | 36″ (914,4 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0039-PBT | 39″ (990,6 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0042-PBT | 42″ (1066,8 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0045-PBT | 45″ (1143 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0048-PBT | 48″ (1219,2 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0051-PBT | 51″ (1295,4 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0054-PBT | 54″ (1371,6 mm) | LFB – Low friction acetal (Blue) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0003-PA6 | 3″ (76,2 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0006-PA6 | 6″ (152,4 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0009-PA6 | 9″ (228,6 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0012-PA6 | 12″ (304,8 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0015-PA6 | 15″ (381 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0018-PA6 | 18″ (457,2 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0021-PA6 | 21″ (533,4 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0024-PA6 | 24″ (609,6 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0027-PA6 | 27″ (685,8 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0030-PA6 | 30″ (762 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0033-PA6 | 33″ (838,2 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0036-PA6 | 36″ (914,4 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0039-PA6 | 39″ (990,6 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0042-PA6 | 42″ (1066,8 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0045-PA6 | 45″ (1143 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0048-PA6 | 48″ (1219,2 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0051-PA6 | 51″ (1295,4 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0054-PA6 | 54″ (1371,6 mm) | LFB – Low friction acetal (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0003-PE | 3″ (76,2 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0006-PE | 6″ (152,4 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0009-PE | 9″ (228,6 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0012-PE | 12″ (304,8 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0015-PE | 15″ (381 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0018-PE | 18″ (457,2 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0021-PE | 21″ (533,4 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0024-PE | 24″ (609,6 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0027-PE | 27″ (685,8 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0030-PE | 30″ (762 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0033-PE | 33″ (838,2 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0036-PE | 36″ (914,4 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0039-PE | 39″ (990,6 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0042-PE | 42″ (1066,8 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0045-PE | 45″ (1143 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0048-PE | 48″ (1219,2 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0051-PE | 51″ (1295,4 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0054-PE | 54″ (1371,6 mm) | LFB – Low friction acetal (Blue) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0003-PP | 3″ (76,2 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0006-PP | 6″ (152,4 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0009-PP | 9″ (228,6 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0012-PP | 12″ (304,8 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0015-PP | 15″ (381 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0018-PP | 18″ (457,2 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0021-PP | 21″ (533,4 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0024-PP | 24″ (609,6 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0027-PP | 27″ (685,8 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0030-PP | 30″ (762 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0033-PP | 33″ (838,2 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0036-PP | 36″ (914,4 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0039-PP | 39″ (990,6 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0042-PP | 42″ (1066,8 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0045-PP | 45″ (1143 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0048-PP | 48″ (1219,2 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0051-PP | 51″ (1295,4 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFB0054-PP | 54″ (1371,6 mm) | LFB – Low friction acetal (Blue) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0003-PBT | 3″ (76,2 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0006-PBT | 6″ (152,4 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0009-PBT | 9″ (228,6 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0012-PBT | 12″ (304,8 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0015-PBT | 15″ (381 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0018-PBT | 18″ (457,2 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0021-PBT | 21″ (533,4 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0024-PBT | 24″ (609,6 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0027-PBT | 27″ (685,8 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0030-PBT | 30″ (762 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0033-PBT | 33″ (838,2 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0036-PBT | 36″ (914,4 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0039-PBT | 39″ (990,6 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0042-PBT | 42″ (1066,8 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0045-PBT | 45″ (1143 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0048-PBT | 48″ (1219,2 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0051-PBT | 51″ (1295,4 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0054-PBT | 54″ (1371,6 mm) | LFC – Low friction acetal (cyan) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0003-PA6 | 3″ (76,2 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0006-PA6 | 6″ (152,4 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0009-PA6 | 9″ (228,6 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0012-PA6 | 12″ (304,8 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0015-PA6 | 15″ (381 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0018-PA6 | 18″ (457,2 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0021-PA6 | 21″ (533,4 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0024-PA6 | 24″ (609,6 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0027-PA6 | 27″ (685,8 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0030-PA6 | 30″ (762 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0033-PA6 | 33″ (838,2 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0036-PA6 | 36″ (914,4 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0039-PA6 | 39″ (990,6 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0042-PA6 | 42″ (1066,8 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0045-PA6 | 45″ (1143 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0048-PA6 | 48″ (1219,2 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0051-PA6 | 51″ (1295,4 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0054-PA6 | 54″ (1371,6 mm) | LFC – Low friction acetal (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0003-PE | 3″ (76,2 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0006-PE | 6″ (152,4 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0009-PE | 9″ (228,6 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0012-PE | 12″ (304,8 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0015-PE | 15″ (381 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0018-PE | 18″ (457,2 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0021-PE | 21″ (533,4 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0024-PE | 24″ (609,6 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0027-PE | 27″ (685,8 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0030-PE | 30″ (762 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0033-PE | 33″ (838,2 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0036-PE | 36″ (914,4 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0039-PE | 39″ (990,6 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0042-PE | 42″ (1066,8 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0045-PE | 45″ (1143 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0048-PE | 48″ (1219,2 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0051-PE | 51″ (1295,4 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0054-PE | 54″ (1371,6 mm) | LFC – Low friction acetal (cyan) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0003-PP | 3″ (76,2 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0006-PP | 6″ (152,4 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0009-PP | 9″ (228,6 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0012-PP | 12″ (304,8 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0015-PP | 15″ (381 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0018-PP | 18″ (457,2 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0021-PP | 21″ (533,4 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0024-PP | 24″ (609,6 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0027-PP | 27″ (685,8 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0030-PP | 30″ (762 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0033-PP | 33″ (838,2 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0036-PP | 36″ (914,4 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0039-PP | 39″ (990,6 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0042-PP | 42″ (1066,8 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0045-PP | 45″ (1143 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0048-PP | 48″ (1219,2 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0051-PP | 51″ (1295,4 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFC0054-PP | 54″ (1371,6 mm) | LFC – Low friction acetal (cyan) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0003-PBT | 3″ (76,2 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0006-PBT | 6″ (152,4 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0009-PBT | 9″ (228,6 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0012-PBT | 12″ (304,8 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0015-PBT | 15″ (381 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0018-PBT | 18″ (457,2 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0021-PBT | 21″ (533,4 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0024-PBT | 24″ (609,6 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0027-PBT | 27″ (685,8 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0030-PBT | 30″ (762 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0033-PBT | 33″ (838,2 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0036-PBT | 36″ (914,4 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0039-PBT | 39″ (990,6 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0042-PBT | 42″ (1066,8 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0045-PBT | 45″ (1143 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0048-PBT | 48″ (1219,2 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0051-PBT | 51″ (1295,4 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0054-PBT | 54″ (1371,6 mm) | LFW – Low Friction acetal (White) | PBT bolt | No positioners | F590 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0003-PA6 | 3″ (76,2 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0006-PA6 | 6″ (152,4 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0009-PA6 | 9″ (228,6 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0012-PA6 | 12″ (304,8 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0015-PA6 | 15″ (381 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0018-PA6 | 18″ (457,2 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0021-PA6 | 21″ (533,4 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0024-PA6 | 24″ (609,6 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0027-PA6 | 27″ (685,8 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0030-PA6 | 30″ (762 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0033-PA6 | 33″ (838,2 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0036-PA6 | 36″ (914,4 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0039-PA6 | 39″ (990,6 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0042-PA6 | 42″ (1066,8 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0045-PA6 | 45″ (1143 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0048-PA6 | 48″ (1219,2 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0051-PA6 | 51″ (1295,4 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0054-PA6 | 54″ (1371,6 mm) | LFW – Low Friction acetal (White) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0003-PE | 3″ (76,2 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0006-PE | 6″ (152,4 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0009-PE | 9″ (228,6 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0012-PE | 12″ (304,8 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0015-PE | 15″ (381 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0018-PE | 18″ (457,2 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0021-PE | 21″ (533,4 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0024-PE | 24″ (609,6 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0027-PE | 27″ (685,8 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0030-PE | 30″ (762 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0033-PE | 33″ (838,2 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0036-PE | 36″ (914,4 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0039-PE | 39″ (990,6 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0042-PE | 42″ (1066,8 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0045-PE | 45″ (1143 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0048-PE | 48″ (1219,2 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0051-PE | 51″ (1295,4 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0054-PE | 54″ (1371,6 mm) | LFW – Low Friction acetal (White) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0003-PP | 3″ (76,2 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0006-PP | 6″ (152,4 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0009-PP | 9″ (228,6 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0012-PP | 12″ (304,8 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0015-PP | 15″ (381 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0018-PP | 18″ (457,2 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0021-PP | 21″ (533,4 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0024-PP | 24″ (609,6 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0027-PP | 27″ (685,8 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0030-PP | 30″ (762 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0033-PP | 33″ (838,2 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0036-PP | 36″ (914,4 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0039-PP | 39″ (990,6 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0042-PP | 42″ (1066,8 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0045-PP | 45″ (1143 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0048-PP | 48″ (1219,2 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0051-PP | 51″ (1295,4 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFW0054-PP | 54″ (1371,6 mm) | LFW – Low Friction acetal (White) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0003-PA6 | 3″ (76,2 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0006-PA6 | 6″ (152,4 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0009-PA6 | 9″ (228,6 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0012-PA6 | 12″ (304,8 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0015-PA6 | 15″ (381 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0018-PA6 | 18″ (457,2 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0021-PA6 | 21″ (533,4 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0024-PA6 | 24″ (609,6 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0027-PA6 | 27″ (685,8 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0030-PA6 | 30″ (762 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0033-PA6 | 33″ (838,2 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0036-PA6 | 36″ (914,4 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0039-PA6 | 39″ (990,6 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0042-PA6 | 42″ (1066,8 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0045-PA6 | 45″ (1143 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0048-PA6 | 48″ (1219,2 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0051-PA6 | 51″ (1295,4 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0054-PA6 | 54″ (1371,6 mm) | LFA – Low friction acetal (01) | PA6 bolt | No positioners | F590 | 25 mm | 26000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0003-PE | 3″ (76,2 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0006-PE | 6″ (152,4 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0009-PE | 9″ (228,6 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0012-PE | 12″ (304,8 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0015-PE | 15″ (381 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0018-PE | 18″ (457,2 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0021-PE | 21″ (533,4 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0024-PE | 24″ (609,6 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0027-PE | 27″ (685,8 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0030-PE | 30″ (762 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0033-PE | 33″ (838,2 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0036-PE | 36″ (914,4 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0039-PE | 39″ (990,6 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0042-PE | 42″ (1066,8 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0045-PE | 45″ (1143 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0048-PE | 48″ (1219,2 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0051-PE | 51″ (1295,4 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0054-PE | 54″ (1371,6 mm) | LFA – Low friction acetal (01) | PE bolt | No positioners | F590 | 25 mm | 16000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0003-PP | 3″ (76,2 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0006-PP | 6″ (152,4 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0009-PP | 9″ (228,6 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0012-PP | 12″ (304,8 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0015-PP | 15″ (381 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0018-PP | 18″ (457,2 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0021-PP | 21″ (533,4 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0024-PP | 24″ (609,6 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0027-PP | 27″ (685,8 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0030-PP | 30″ (762 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0033-PP | 33″ (838,2 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0036-PP | 36″ (914,4 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0039-PP | 39″ (990,6 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0042-PP | 42″ (1066,8 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0045-PP | 45″ (1143 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0048-PP | 48″ (1219,2 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0051-PP | 51″ (1295,4 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTLFA0054-PP | 54″ (1371,6 mm) | LFA – Low friction acetal (01) | PP bolt | No positioners | F590 | 25 mm | 15000 N/m | 7.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0003-PBT | 3″ (76,2 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0006-PBT | 6″ (152,4 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0009-PBT | 9″ (228,6 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0012-PBT | 12″ (304,8 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0015-PBT | 15″ (381 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0018-PBT | 18″ (457,2 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0021-PBT | 21″ (533,4 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0024-PBT | 24″ (609,6 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0027-PBT | 27″ (685,8 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0030-PBT | 30″ (762 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0033-PBT | 33″ (838,2 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0036-PBT | 36″ (914,4 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0039-PBT | 39″ (990,6 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0042-PBT | 42″ (1066,8 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0045-PBT | 45″ (1143 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0048-PBT | 48″ (1219,2 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0051-PBT | 51″ (1295,4 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0054-PBT | 54″ (1371,6 mm) | PPB – Polypropylene (Blue) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0003-PA6 | 3″ (76,2 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0006-PA6 | 6″ (152,4 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0009-PA6 | 9″ (228,6 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0012-PA6 | 12″ (304,8 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0015-PA6 | 15″ (381 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0018-PA6 | 18″ (457,2 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0021-PA6 | 21″ (533,4 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0024-PA6 | 24″ (609,6 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0027-PA6 | 27″ (685,8 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0030-PA6 | 30″ (762 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0033-PA6 | 33″ (838,2 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0036-PA6 | 36″ (914,4 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0039-PA6 | 39″ (990,6 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0042-PA6 | 42″ (1066,8 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0045-PA6 | 45″ (1143 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0048-PA6 | 48″ (1219,2 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0051-PA6 | 51″ (1295,4 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0054-PA6 | 54″ (1371,6 mm) | PPB – Polypropylene (Blue) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0003-PE | 3″ (76,2 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0006-PE | 6″ (152,4 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0009-PE | 9″ (228,6 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0012-PE | 12″ (304,8 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0015-PE | 15″ (381 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0018-PE | 18″ (457,2 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0021-PE | 21″ (533,4 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0024-PE | 24″ (609,6 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0027-PE | 27″ (685,8 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0030-PE | 30″ (762 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0033-PE | 33″ (838,2 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0036-PE | 36″ (914,4 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0039-PE | 39″ (990,6 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0042-PE | 42″ (1066,8 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0045-PE | 45″ (1143 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0048-PE | 48″ (1219,2 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0051-PE | 51″ (1295,4 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0054-PE | 54″ (1371,6 mm) | PPB – Polypropylene (Blue) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0003-PP | 3″ (76,2 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0006-PP | 6″ (152,4 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0009-PP | 9″ (228,6 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0012-PP | 12″ (304,8 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0015-PP | 15″ (381 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0018-PP | 18″ (457,2 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0021-PP | 21″ (533,4 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0024-PP | 24″ (609,6 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0027-PP | 27″ (685,8 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0030-PP | 30″ (762 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0033-PP | 33″ (838,2 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0036-PP | 36″ (914,4 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0039-PP | 39″ (990,6 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0042-PP | 42″ (1066,8 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0045-PP | 45″ (1143 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0048-PP | 48″ (1219,2 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0051-PP | 51″ (1295,4 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPB0054-PP | 54″ (1371,6 mm) | PPB – Polypropylene (Blue) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0003-PBT | 3″ (76,2 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0006-PBT | 6″ (152,4 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0009-PBT | 9″ (228,6 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0012-PBT | 12″ (304,8 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0015-PBT | 15″ (381 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0018-PBT | 18″ (457,2 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0021-PBT | 21″ (533,4 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0024-PBT | 24″ (609,6 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0027-PBT | 27″ (685,8 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0030-PBT | 30″ (762 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0033-PBT | 33″ (838,2 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0036-PBT | 36″ (914,4 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0039-PBT | 39″ (990,6 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0042-PBT | 42″ (1066,8 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0045-PBT | 45″ (1143 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0048-PBT | 48″ (1219,2 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0051-PBT | 51″ (1295,4 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0054-PBT | 54″ (1371,6 mm) | PPC – Polypropylene (cyan) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0003-PA6 | 3″ (76,2 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0006-PA6 | 6″ (152,4 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0009-PA6 | 9″ (228,6 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0012-PA6 | 12″ (304,8 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0015-PA6 | 15″ (381 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0018-PA6 | 18″ (457,2 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0021-PA6 | 21″ (533,4 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0024-PA6 | 24″ (609,6 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0027-PA6 | 27″ (685,8 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0030-PA6 | 30″ (762 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0033-PA6 | 33″ (838,2 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0036-PA6 | 36″ (914,4 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0039-PA6 | 39″ (990,6 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0042-PA6 | 42″ (1066,8 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0045-PA6 | 45″ (1143 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0048-PA6 | 48″ (1219,2 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0051-PA6 | 51″ (1295,4 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0054-PA6 | 54″ (1371,6 mm) | PPC – Polypropylene (cyan) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0003-PE | 3″ (76,2 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0006-PE | 6″ (152,4 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0009-PE | 9″ (228,6 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0012-PE | 12″ (304,8 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0015-PE | 15″ (381 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0018-PE | 18″ (457,2 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0021-PE | 21″ (533,4 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0024-PE | 24″ (609,6 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0027-PE | 27″ (685,8 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0030-PE | 30″ (762 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0033-PE | 33″ (838,2 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0036-PE | 36″ (914,4 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0039-PE | 39″ (990,6 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0042-PE | 42″ (1066,8 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0045-PE | 45″ (1143 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0048-PE | 48″ (1219,2 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0051-PE | 51″ (1295,4 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0054-PE | 54″ (1371,6 mm) | PPC – Polypropylene (cyan) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0003-PP | 3″ (76,2 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0006-PP | 6″ (152,4 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0009-PP | 9″ (228,6 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0012-PP | 12″ (304,8 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0015-PP | 15″ (381 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0018-PP | 18″ (457,2 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0021-PP | 21″ (533,4 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0024-PP | 24″ (609,6 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0027-PP | 27″ (685,8 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0030-PP | 30″ (762 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0033-PP | 33″ (838,2 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0036-PP | 36″ (914,4 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0039-PP | 39″ (990,6 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0042-PP | 42″ (1066,8 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0045-PP | 45″ (1143 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0048-PP | 48″ (1219,2 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0051-PP | 51″ (1295,4 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPC0054-PP | 54″ (1371,6 mm) | PPC – Polypropylene (cyan) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0003-PBT | 3″ (76,2 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0006-PBT | 6″ (152,4 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0009-PBT | 9″ (228,6 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0012-PBT | 12″ (304,8 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0015-PBT | 15″ (381 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0018-PBT | 18″ (457,2 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0021-PBT | 21″ (533,4 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0024-PBT | 24″ (609,6 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0027-PBT | 27″ (685,8 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0030-PBT | 30″ (762 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0033-PBT | 33″ (838,2 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0036-PBT | 36″ (914,4 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0039-PBT | 39″ (990,6 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0042-PBT | 42″ (1066,8 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0045-PBT | 45″ (1143 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0048-PBT | 48″ (1219,2 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0051-PBT | 51″ (1295,4 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0054-PBT | 54″ (1371,6 mm) | PPW – Polypropylene (white) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0003-PA6 | 3″ (76,2 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0006-PA6 | 6″ (152,4 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0009-PA6 | 9″ (228,6 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0012-PA6 | 12″ (304,8 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0015-PA6 | 15″ (381 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0018-PA6 | 18″ (457,2 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0021-PA6 | 21″ (533,4 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0024-PA6 | 24″ (609,6 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0027-PA6 | 27″ (685,8 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0030-PA6 | 30″ (762 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0033-PA6 | 33″ (838,2 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0036-PA6 | 36″ (914,4 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0039-PA6 | 39″ (990,6 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0042-PA6 | 42″ (1066,8 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0045-PA6 | 45″ (1143 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0048-PA6 | 48″ (1219,2 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0051-PA6 | 51″ (1295,4 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0054-PA6 | 54″ (1371,6 mm) | PPW – Polypropylene (white) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0003-PE | 3″ (76,2 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0006-PE | 6″ (152,4 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0009-PE | 9″ (228,6 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0012-PE | 12″ (304,8 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0015-PE | 15″ (381 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0018-PE | 18″ (457,2 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0021-PE | 21″ (533,4 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0024-PE | 24″ (609,6 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0027-PE | 27″ (685,8 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0030-PE | 30″ (762 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0033-PE | 33″ (838,2 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0036-PE | 36″ (914,4 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0039-PE | 39″ (990,6 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0042-PE | 42″ (1066,8 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0045-PE | 45″ (1143 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0048-PE | 48″ (1219,2 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0051-PE | 51″ (1295,4 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0054-PE | 54″ (1371,6 mm) | PPW – Polypropylene (white) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0003-PP | 3″ (76,2 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0006-PP | 6″ (152,4 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0009-PP | 9″ (228,6 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0012-PP | 12″ (304,8 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0015-PP | 15″ (381 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0018-PP | 18″ (457,2 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0021-PP | 21″ (533,4 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0024-PP | 24″ (609,6 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0027-PP | 27″ (685,8 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0030-PP | 30″ (762 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0033-PP | 33″ (838,2 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0036-PP | 36″ (914,4 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0039-PP | 39″ (990,6 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0042-PP | 42″ (1066,8 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0045-PP | 45″ (1143 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0048-PP | 48″ (1219,2 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0051-PP | 51″ (1295,4 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPW0054-PP | 54″ (1371,6 mm) | PPW – Polypropylene (white) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0003-PBT | 3″ (76,2 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0006-PBT | 6″ (152,4 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0009-PBT | 9″ (228,6 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0012-PBT | 12″ (304,8 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0015-PBT | 15″ (381 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0018-PBT | 18″ (457,2 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0021-PBT | 21″ (533,4 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0024-PBT | 24″ (609,6 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0027-PBT | 27″ (685,8 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0030-PBT | 30″ (762 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0033-PBT | 33″ (838,2 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0036-PBT | 36″ (914,4 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0039-PBT | 39″ (990,6 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0042-PBT | 42″ (1066,8 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0045-PBT | 45″ (1143 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0048-PBT | 48″ (1219,2 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0051-PBT | 51″ (1295,4 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0054-PBT | 54″ (1371,6 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 22500 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0003-PA6 | 3″ (76,2 mm) | PPG – Polypropylene (grey) | PBT bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0006-PA6 | 6″ (152,4 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0009-PA6 | 9″ (228,6 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0012-PA6 | 12″ (304,8 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0015-PA6 | 15″ (381 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0018-PA6 | 18″ (457,2 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0021-PA6 | 21″ (533,4 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0024-PA6 | 24″ (609,6 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0027-PA6 | 27″ (685,8 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0030-PA6 | 30″ (762 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0033-PA6 | 33″ (838,2 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0036-PA6 | 36″ (914,4 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0039-PA6 | 39″ (990,6 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0042-PA6 | 42″ (1066,8 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0045-PA6 | 45″ (1143 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0048-PA6 | 48″ (1219,2 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0051-PA6 | 51″ (1295,4 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0054-PA6 | 54″ (1371,6 mm) | PPG – Polypropylene (grey) | PA6 bolt | No positioners | F590 | 25 mm | 18000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0003-PE | 3″ (76,2 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0006-PE | 6″ (152,4 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0009-PE | 9″ (228,6 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0012-PE | 12″ (304,8 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0015-PE | 15″ (381 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0018-PE | 18″ (457,2 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0021-PE | 21″ (533,4 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0024-PE | 24″ (609,6 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0027-PE | 27″ (685,8 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0030-PE | 30″ (762 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0033-PE | 33″ (838,2 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0036-PE | 36″ (914,4 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0039-PE | 39″ (990,6 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0042-PE | 42″ (1066,8 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0045-PE | 45″ (1143 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0048-PE | 48″ (1219,2 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0051-PE | 51″ (1295,4 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0054-PE | 54″ (1371,6 mm) | PPG – Polypropylene (grey) | PE bolt | No positioners | F590 | 25 mm | 11000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0003-PP | 3″ (76,2 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0006-PP | 6″ (152,4 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0009-PP | 9″ (228,6 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0012-PP | 12″ (304,8 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0015-PP | 15″ (381 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0018-PP | 18″ (457,2 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0021-PP | 21″ (533,4 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0024-PP | 24″ (609,6 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0027-PP | 27″ (685,8 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0030-PP | 30″ (762 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0033-PP | 33″ (838,2 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0036-PP | 36″ (914,4 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0039-PP | 39″ (990,6 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0042-PP | 42″ (1066,8 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0045-PP | 45″ (1143 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0048-PP | 48″ (1219,2 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0051-PP | 51″ (1295,4 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| F590FTPPG0054-PP | 54″ (1371,6 mm) | PPG – Polypropylene (grey) | PP bolt | No positioners | F590 | 25 mm | 13000 N/m | 5.2 kg/m^2 | Snap-in Clip | – |
| P5301010003A | 3″ (76,2 mm) | LFA – Low friction acetal (01) | PBT alb | A – No positioners | P5301 | 25 mm | 30000 N/m | 7.2 kg/m^2 | Snap-in Clip | 10 ft – 3,048 m |
